SKU: TW2424AS-W3P  |   Brand: iiyama

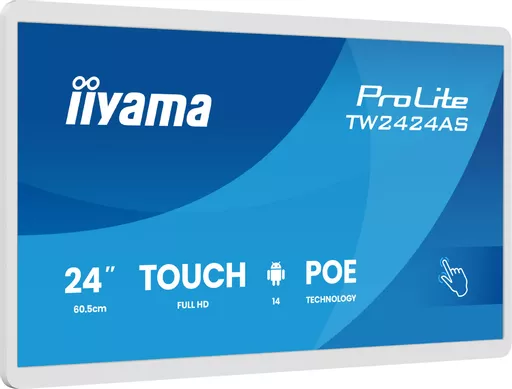

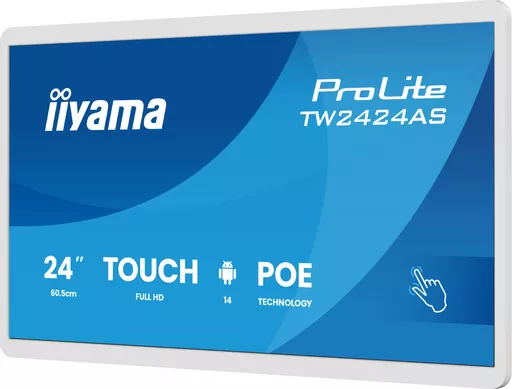

iiyama TW2424AS-W3P Signage Display Interactive flat panel 60.5 cm (23.8") LCD Wi-Fi 450 cd/m² Full HD White Touchscreen Built-in processor Android 24/7

SKU: TW2424AS-W3P  |   Brand: iiyama

iiyama TW2424AS-W3P Signage Display Interactive flat panel 60.5 cm (23.8") LCD Wi-Fi 450 cd/m² Full HD White Touchscreen Built-in processor Android 24/7

0 in stock

£404.38 ex. VAT

Figures are exclusive of VAT.



The ProLite TW2424AS-W3P interactive Touchpanel-PC is a perfect choice for high-use environments. The IPS panel, integrated in a slim and elegant bezel, delivers both excellent colour performance with wide viewing angles and noticeably sharper images. The In-cell 10tp PCAP touch technology ensures a fluid and natural touch experience. This monitor can operate in landscape, portrait and face-up orientation in 24/7 operating time. Thanks to the pre-installed Android 14 operating system, it is possible to easily customize the monitor by installing applications directly to it. In combination with the 32GB storage, Wi-Fi connection, LAN (RJ45) and Bluetooth connectors, it makes the monitor especially suited for POS systems or information points in retail shops to educate customers about your products, as well as virtually limitless smart home applications. Thanks to Power over Ethernet (PoE), both power and data are delivered through a single cable, simplifying installation and reducing additional cables. Additionally, it integrates effortlessly with iiSignage2 , iiyama’s Content Management System (CMS), giving you full control over your messages and advertising.

HDMI ports quantity 1
HD type Full HD
Display resolution 1920 x 1080 pixels
Display technology LCD
Product colour White
Product design Interactive flat panel
Weight 6.00kg

Display
Panel typeIPS
Display number of colours16.7 million colours
Number of simultaneous touchpoints10
TouchscreenYes
Active display area (W x H)527 x 296.5 mm
Display technologyLCD
Display diagonal60.5 cm (23.8")
Display resolution1920 x 1080 pixels
Display brightness450 cd/m²
HD typeFull HD
Response time14 ms
Contrast ratio (typical)1000:1
Viewing angle, horizontal178°
Viewing angle, vertical178°
Pixel pitch0.275 x 0.275 mm
Display diagonal (metric)60.5 cm
Native aspect ratio16:9
Colour depth8 bit
Touchscreen technologyProjected capacitive system
Surface hardness6H
Multi-touchYes
Ports & interfaces
USB portYes
Wi-Fi standardsWi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b
Wi-FiYes
DisplayPorts quantity0
Ethernet LANYes
HDMI ports quantity1
Ethernet LAN data rates1000 Mbit/s
DVI portNo
Ethernet LAN (RJ-45) ports1
USB version3.2 Gen 1 (3.1 Gen 1)
USB ports quantity2
Audio
Number of built-in speakers2
RMS rated power10 W
Built-in speaker(s)Yes
Design
Product designInteractive flat panel
Placement supportedIndoor
Product colourWhite
Panel mounting interface100 x 100 mm
VESA mountingYes
Bezel colourWhite
Performance
PurposeCommercial
Operating hours (hours/days)24/7
Mean time between failures (MTBF)50000 h
HDCPYes
Wi-FiYes
Power
Power consumption (off)0.3 W
Power consumption (typical)17.5 W
Power consumption (standby)0.5 W
Input voltage12 V
Computer system
Computer systemYes
Computer system typeSystem on Chip (SoC)
Processor cores8
Processor familyARM Rockchip
Processor modelRK3576
Operating system installedAndroid
Internal memory4 GB
Internal storage capacity32 GB
Processor manufacturerRockchip
Built-in processorYes
Google applicationsGoogle Chrome, Gmail, Google Calendar
Processor architectureARM Cortex-A53+Cortex-A72
Operating system version14
Weight & dimensions
Width (with stand)550 mm
Height (with stand)336 mm
Depth (with stand)28 mm
Width550 mm
Depth28 mm
Height336 mm
Weight4.24 kg
Weight (with stand)4.24 kg
Display width550 mm
Display depth28 mm
Display height336 mm
Display weight4.24 kg
Packaging data
Package width640 mm
Package depth121 mm
Package height410 mm
Package weight6.2 kg
Quick start guideYes
Cables includedAC
Packaging content
Quick start guideYes
Cables includedAC
Technical details
VESA mountingYes
Power supply typeExternal
Panel typeIPS
Cable managementYes
Brightness450 cd/m²
Number of simultaneous touchpoints10
Weight (with stand)4.24 kg
User controlsPower switch, volume/ button +, volume/ button -
Sustainability certificatesErP
Compliance certificatesCE, EAC, REACH, RoHS, UKCA, WEEE
Network
Wi-Fi standardsWi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b
Wi-FiYes
Ethernet LANYes
Ethernet LAN data rates1000 Mbit/s
Thin Client
Processor familyARM Rockchip
Processor modelRK3576
Operating system installedAndroid
Internal memory4 GB
Internal storage capacity32 GB
Other features
Power supply typeExternal
Panel typeIPS
Cable managementYes
Brightness450 cd/m²
Number of simultaneous touchpoints10
Wi-Fi standardsWi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b
Wi-FiYes
Width (with stand)550 mm
Viewable size, vertical29.6 cm
Viewable size, horizontal52.7 cm
Mean time between failures (MTBF)50000 h
Height (with stand)336 mm
Display technologyLCD
Depth (with stand)28 mm
Built-in microphoneYes
Bluetooth version5.3
BluetoothYes
Quick start guideYes
AC adapter includedYes
Weight (with stand)4.24 kg
Input voltage12 V
