SKU: E3MUPS120KHS  |   Brand: APC

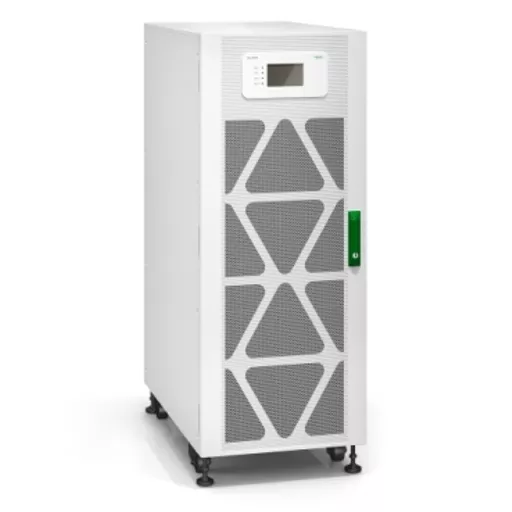

APC E3MUPS120KHS uninterruptible power supply (UPS) Double-conversion (Online) 120 kVA 120000 W

SKU: E3MUPS120KHS  |   Brand: APC

APC E3MUPS120KHS uninterruptible power supply (UPS) Double-conversion (Online) 120 kVA 120000 W

0 in stock

£12,713.37 ex. VAT

Figures are exclusive of VAT.



Easy-to-install, easy-to-connect, easy-to-use, and easy-to-service 120 kVA 3 phase UPS with advanced product features, robust electrical specifications and compact design making your business continuity easy." "Ideal for small and medium data centers and other business critical applications, this UPS is EcoStruxure-ready to give you peace of mind with cloud-based remote monitoring and management." "It is supplied without batteries, so you can easily customize your battery solution." "Includes 5x8 start-up service.

Product colour White
Form factor Tower
UPS topology Double-conversion (Online)
Weight 223,000.00kg

Power
Output voltage regulation1%
Output power120000 W
Input operation voltage (min)342 V
Input operation voltage (max)477 V
Output operation voltage (min)380 V
Output operation voltage (max)415 V
Maximum current207 A
Power factor0.99
Output voltage Total Harmonic Distortion (THD)3%
Input current Total Harmonic Distortion (THD)3%
Output power capacity120 kVA
Performance
UPS topologyDouble-conversion (Online)
WaveformSine
Number of output phases3
Number of input phases3
Features
Output frequency50/60 Hz
UPS topologyDouble-conversion (Online)
WaveformSine
Output voltage regulation1%
Number of output phases3
Number of input phases3
Output power120000 W
Input operation voltage (min)342 V
Input operation voltage (max)477 V
Output operation voltage (min)380 V
Output operation voltage (max)415 V
Maximum current207 A
Power factor0.99
Output voltage Total Harmonic Distortion (THD)3%
Input current Total Harmonic Distortion (THD)3%
Output power capacity120 kVA
Input frequency40/70 Hz
Ports & interfaces
USB portYes
Design
International Protection (IP) codeIP20
Form factorTower
Product colourWhite
Control typeTouch
Display typeLCD
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-25 - 55 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 1500 m
Non-operating altitude0 - 15240 m
Technical details
Output frequency50/60 Hz
Packaging content
Quick installation guideYes
ManualYes
Batteries includedNo
Weight & dimensions
Package width975 mm
Package depth625 mm
Package height1500 mm
Weight1.93 kg
Width500 mm
Package weight223 kg
Height1300 mm
Depth850 mm
Packaging data
Quick installation guideYes
ManualYes
Package width975 mm
Package depth625 mm
Package height1500 mm
Package weight223 kg
