SKU: SRVL6KRILRK  |   Brand: APC

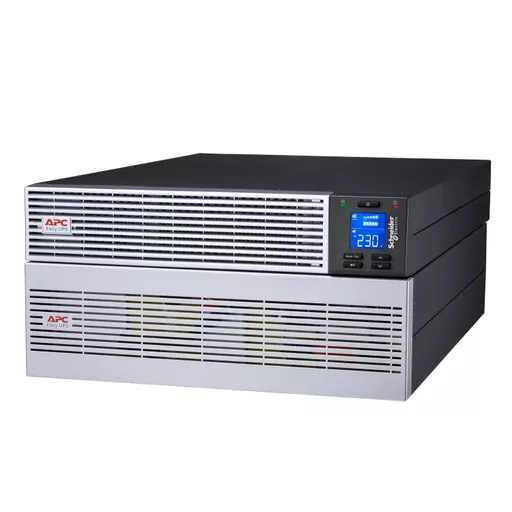

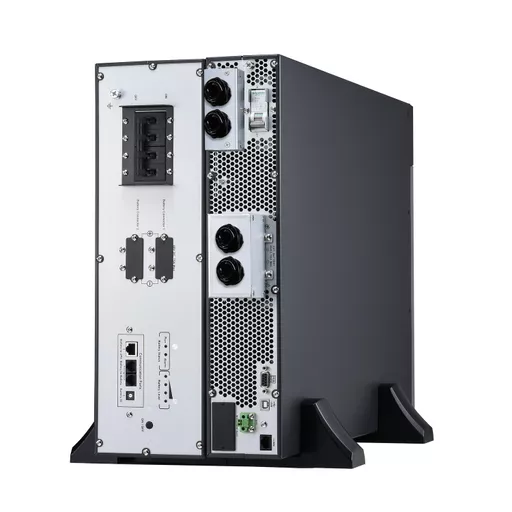

APC Easy UPS On-Line, 6kVA/6kW, Lithium-ion, Rack/Tower 5U, 230V, 1 Hard wire (1P+N+E) outlet, Intelligent Card Slot, Extended runtime, W/ rail kit

SKU: SRVL6KRILRK  |   Brand: APC

APC Easy UPS On-Line, 6kVA/6kW, Lithium-ion, Rack/Tower 5U, 230V, 1 Hard wire (1P+N+E) outlet, Intelligent Card Slot, Extended runtime, W/ rail kit

9 in stock

£5,499.80 ex. VAT

Figures are exclusive of VAT.



Single Phase True Double-conversion On-Line UPS Lithium-Ion battery has a lifetime of eight to ten years which offers reliable support and extends the useful life of your UPS. 230V 6000VA Extendeded runtime model with rail kit Longer runtime and faster recharge time compared to VRLA generation. More real output power in watts 0.9 PF Up to 93.5% efficiency in on-line double conversion mode and up to 97% in ECO mode saves utility and cooling costs without compromising performance or reliability. Its dimensions are 438mm (width) x 686.4mm (depth) x 133mm (height) 5U in total which includes 2U Power module and 3U external battery pack. The net weighs is 69.7kg. Up to 3 external lithium-ion battery packs support at maximum. It's ideal for Micro Data Center and Server room, Industrial Automation , Equipment Manufacturing. CB, CE, UN38.3 External Battery Pack, Managemnt Card (Network Management card, Dry contact card, modbus Card) options are available. Rack/ Tower convertible design with default accessory kit.

Output power 3000W to 6000W
Form factor Rackmount/Tower
UPS topology Double-conversion (Online)
Weight 8,590.00kg

Power
Output power6000 W
Input operation voltage (min)120 V
Input operation voltage (max)300 V
Output operation voltage (min)230 V
Surge energy rating600 J
Efficiency93.5%
Emergency Power Off (EPO)Yes
Crest factor3:1
Output power capacity6 kVA
Single-phase input voltage supported230 V
Performance
Audible alarm modesAlarm when on battery, Overload alarm
UPS topologyDouble-conversion (Online)
WaveformSine
Number of output phases1
Number of input phases1
Noise level57.3 dB
Features
Output frequency50/60 Hz
Country of originChina
Audible alarm modesAlarm when on battery, Overload alarm
UPS topologyDouble-conversion (Online)
WaveformSine
Number of output phases1
Number of input phases1
Output power6000 W
Input operation voltage (min)120 V
Input operation voltage (max)300 V
Output operation voltage (min)230 V
Surge energy rating600 J
Efficiency93.5%
Emergency Power Off (EPO)Yes
Noise level57.3 dB
Crest factor3:1
Output power capacity6 kVA
Single-phase input voltage supported230 V
Input frequency40/70 Hz
Ports & interfaces
USB portYes
Battery
Battery life (max)10 year(s)
Battery voltage48 V
Battery technologyLithium-Ion (Li-Ion)
Battery recharge time5 h
Design
Country of originChina
International Protection (IP) codeIP20
Rack capacity5U
Form factorRackmount/Tower
Product colourBlack, Silver
CertificationCB; CE; UKCA; RCM; IRAM; TISI; UN 38.3; IEC 62619
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 50 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m
Technical details
Output voltage230 V
Output frequency50/60 Hz
Mountinghorizontal and vertical
Total carbon footprint (kg of CO2e)789.2474559231015
Compliance certificatesRoHS, REACH, WEEE
Certificates
CertificationCB; CE; UKCA; RCM; IRAM; TISI; UN 38.3; IEC 62619
Waste Electrical and Electronic Equipment (WEEE) complianceYes
Compliance certificatesRoHS, REACH, WEEE
Packaging content
Cables includedPhone (RJ-11), RJ-45, RS-232, USB cable
ManualYes
Certification
Waste Electrical and Electronic Equipment (WEEE) complianceYes
Weight & dimensions
Package width600 mm
Package depth800 mm
Package height652 mm
Weight69.2 kg
Width438 mm
Package weight8.59 kg
Height217 mm
Depth685 mm
Packaging data
Cables includedPhone (RJ-11), RJ-45, RS-232, USB cable
ManualYes
Package width600 mm
Package depth800 mm
Package height652 mm
Package weight8.59 kg
Logistics data
Country of originChina
Customs product code (TARIC)8504409590
Total carbon footprint (kg of CO2e)789.2474559231015
Other features
Output voltage230 V
Mountinghorizontal and vertical
Output connection typehard wire 3-wire (1P + N + E) for 1 zone(s)
