SKU: GVSUPS100KMHS  |   Brand: APC

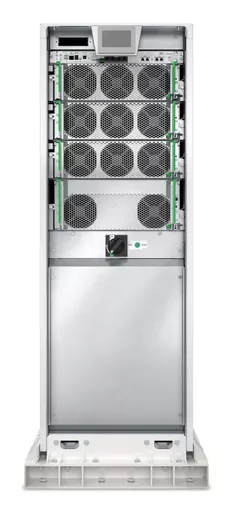

APC GVSUPS100KMHS uninterruptible power supply (UPS) 100 kVA 100000 W

SKU: GVSUPS100KMHS  |   Brand: APC

APC GVSUPS100KMHS uninterruptible power supply (UPS) 100 kVA 100000 W

0 in stock

£16,076.26 ex. VAT

Figures are exclusive of VAT.



Highly efficient, easy-to-deploy 100kW, 400V 3-phase UPS." "Brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications." "Includes 5x8 start-up service and halogen-free cables. Marine certified.

Product colour White
Weight 290.00kg

Power
Output power100000 W
Input operation voltage (min)380 V
Input operation voltage (max)415 V
Output operation voltage (min)380 V
Output operation voltage (max)400 V
Maximum current180 A
Power factor0.7
Output voltage Total Harmonic Distortion (THD)1%
Input current Total Harmonic Distortion (THD)3%
Crest factor2.5:1
Output power capacity100 kVA
Performance
WaveformSine
Number of output phases3
Number of input phases3
Noise level68 dB
Features
Output frequency50/60 Hz
WaveformSine
Number of output phases3
Number of input phases3
Output power100000 W
Input operation voltage (min)380 V
Input operation voltage (max)415 V
Output operation voltage (min)380 V
Output operation voltage (max)400 V
Maximum current180 A
Power factor0.7
Output voltage Total Harmonic Distortion (THD)1%
Noise level68 dB
Input current Total Harmonic Distortion (THD)3%
Crest factor2.5:1
Output power capacity100 kVA
Input frequency40 - 70 Hz
Heat dissipation11373 BTU/h
Battery
Battery technologySealed Lead Acid (VRLA)
Design
International Protection (IP) codeIP21
Product colourWhite
Control typeTouch
Display typeLCD
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-25 - 55 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)10 - 80%
Operating altitude0 - 1000 m
Technical details
Output frequency50/60 Hz
Warranty period1 year(s)
Packaging content
ManualYes
Weight & dimensions
Package width990 mm
Package depth640 mm
Package height168 mm
Weight250 kg
Width521 mm
Package weight290 kg
Height1485 mm
Depth847 mm
Packaging data
ManualYes
Package width990 mm
Package depth640 mm
Package height168 mm
Package weight290 kg
Logistics data
Warranty period1 year(s)
