SKU: SRT5KRMXLIM  |   Brand: APC

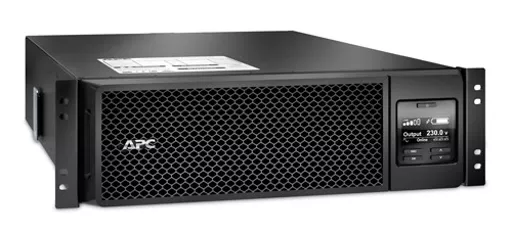

APC Smart-UPS On-Line, 5kVA, Rackmount 3U, 230V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/ rail kit, Marine

SKU: SRT5KRMXLIM  |   Brand: APC

APC Smart-UPS On-Line, 5kVA, Rackmount 3U, 230V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/ rail kit, Marine

0 in stock

£4,474.93 ex. VAT

Figures are exclusive of VAT.



This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 5kVA on-line 3U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (1P+N+E) input, 6x IEC 320 C13 and 4x IEC 320 C19 outlets, and 2x IEC jumper cables. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.

Form factor Mini tower
Output power 3000W to 6000W
UPS topology Double-conversion (Online)
Output power capacity 4000VA to 6000VA
Product colour Black
Weight 66,860.00kg

Power
Output power4500 W
Input operation voltage (min)160 V
Input operation voltage (max)275 V
Output operation voltage (min)220 V
Output operation voltage (max)230 V
Surge energy rating480 J
Emergency Power Off (EPO)Yes
Output voltage Total Harmonic Distortion (THD)3%
Crest factor3:1
Output power capacity5 kVA
Performance
UPS topologyDouble-conversion (Online)
WaveformPure sine
LED indicatorsYes
Surge protectionYes
Noise level55 dB
Audible alarm(s)Yes
Temperature voltage compensationYes
Features
Output frequency50/60 Hz
UPS topologyDouble-conversion (Online)
WaveformPure sine
Output power4500 W
Input operation voltage (min)160 V
Input operation voltage (max)275 V
Output operation voltage (min)220 V
Output operation voltage (max)230 V
Surge energy rating480 J
Surge protectionYes
Emergency Power Off (EPO)Yes
Output voltage Total Harmonic Distortion (THD)3%
Noise level55 dB
Crest factor3:1
Audible alarm(s)Yes
Output power capacity5 kVA
Temperature voltage compensationYes
Input frequency45/65 Hz
Ports & interfaces
USB portYes
Serial interfaceYes
Serial interface typeRJ-45
SmartSlotYes
Cabling technology10/100Base-T
AC outlets quantity12 AC outlet(s)
AC outlet typesC13 coupler, C19 coupler, IEC Jumpers
Power plugTerminal
USB 2.0 ports quantity1
Serial ports quantity1
Ethernet LAN (RJ-45) ports1
Battery
Battery life (max)5 year(s)
Number of batteries supported1
Battery technologySealed Lead Acid (VRLA)
Battery recharge time1 h
Hot-swap batteryYes
Automatic battery testYes
Design
International Protection (IP) codeIP20
Form factorMini Tower
LED indicatorsYes
Product colourBlack
CertificationCE, DNV, EAC, RCM, VDE, REACH
Display typeLCD
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 45 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m
Technical details
Output frequency50/60 Hz
Harmonized System (HS) code85078000
Total carbon footprint (kg of CO2e)46266.7
Compliance certificatesRoHS
Certificates
CertificationCE, DNV, EAC, RCM, VDE, REACH
Compliance certificatesRoHS
Packaging content
Quick installation guideYes
Resource CDYes
Warranty cardYes
Weight & dimensions
Package width610 mm
Package depth960 mm
Package height330 mm
Weight54.4 kg
Width432 mm
Package weight66.9 kg
Height130 mm
Depth719 mm
Packaging data
Quick installation guideYes
Resource CDYes
Warranty cardYes
Package width610 mm
Package depth960 mm
Package height330 mm
Package weight66.9 kg
Logistics data
Harmonized System (HS) code85078000
Total carbon footprint (kg of CO2e)46266.7
