SKU: 5P650IRG2BS  |   Brand: Eaton

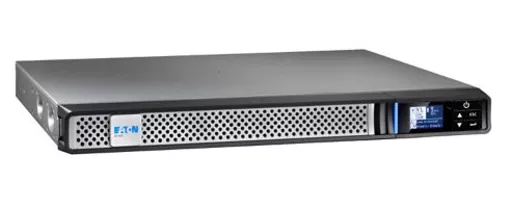

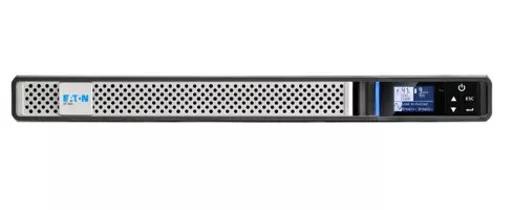

Eaton 5P650IRG2BS uninterruptible power supply (UPS) Line-Interactive 0.65 kVA 520 W 4 AC outlet(s)

SKU: 5P650IRG2BS  |   Brand: Eaton

Eaton 5P650IRG2BS uninterruptible power supply (UPS) Line-Interactive 0.65 kVA 520 W 4 AC outlet(s)

19 in stock

£377.27 ex. VAT

Figures are exclusive of VAT.



Form factor Rackmount
Output power 500W to 1000W
UPS topology Line-interactive
Weight 8,863.00kg

Power
Output power factor0.8
Output power520 W
Input operation voltage (min)160 V
Input operation voltage (max)294 V
Output operation voltage (min)200 V
Output operation voltage (max)240 V
Efficiency97%
Output power capacity0.65 kVA
Performance
UPS topologyLine-Interactive
WaveformSine
Number of output phases1
Number of input phases1
Noise level35 dB
Features
UPS topologyLine-Interactive
WaveformSine
Number of output phases1
Number of input phases1
Output power factor0.8
Output power520 W
Input operation voltage (min)160 V
Input operation voltage (max)294 V
Output operation voltage (min)200 V
Output operation voltage (max)240 V
Efficiency97%
Noise level35 dB
Output power capacity0.65 kVA
Input frequency47/70 Hz

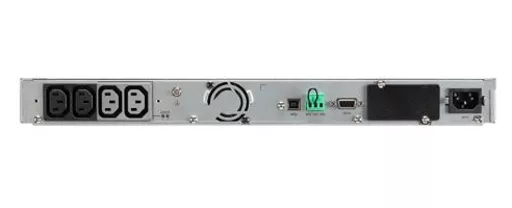

Ports & interfaces
USB portYes
Serial interfaceYes
Serial interface typeRS-232
AC outlets quantity4 AC outlet(s)
AC outlet typesC13 coupler
Power plugC14 coupler
Serial ports quantity1
Battery
Battery voltage6 V
Battery capacity9 Ah
Battery technologyLead-Acid
Automatic battery testYes
Design
Form factorRackmount
Product colourBlack, Silver
Display typeLCD
Operational conditions
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)0 - 90%
Operating altitude0 - 3000 m
Technical details
Compliance certificatesBIS, CE, Electromagnetic Compatibility (EMC), KCC, Low Voltage Directive (LVD), RoHS, UKCA, WEEE, cTUVus
Certificates
Compliance certificatesBIS, CE, Electromagnetic Compatibility (EMC), KCC, Low Voltage Directive (LVD), RoHS, UKCA, WEEE, cTUVus
Packaging content
Quick installation guideYes
Cables includedInput power cable, Serial, USB cable
Rack mount kitYes
Weight & dimensions
Weight8.86 kg
Width438 mm
Height43.2 mm
Depth361 mm
Packaging data
Quick installation guideYes
Cables includedInput power cable, Serial, USB cable
Rack mount kitYes
