SKU: 9PXEBM72RT1U-L  |   Brand: Eaton

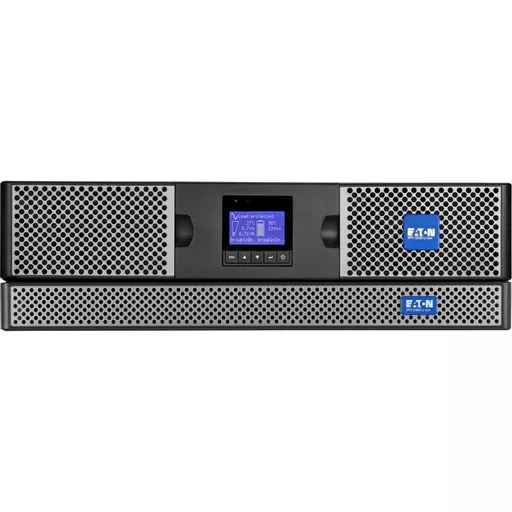

Eaton 9PXEBM72RT1U-L uninterruptible power supply (UPS) Double-conversion (Online) 2.2 kVA 2200 W 10 AC outlet(s)

SKU: 9PXEBM72RT1U-L  |   Brand: Eaton

Eaton 9PXEBM72RT1U-L uninterruptible power supply (UPS) Double-conversion (Online) 2.2 kVA 2200 W 10 AC outlet(s)

1 in stock

£1,649.23 ex. VAT

Figures are exclusive of VAT.



UPS topology Double-conversion (Online)
Output power 2000W to 3000W
Form factor Rackmount/Tower
Weight 17,400.00kg

Power
Output power2200 W
Input operation voltage (min)176 V
Input operation voltage (max)276 V
Output operation voltage (min)200 V
Output operation voltage (max)240 V
Efficiency93.5%
Output power capacity2.2 kVA
Performance
UPS topologyDouble-conversion (Online)
WaveformPure sine
Number of input phases1
LED indicatorsYes
Noise level40 dB
Features
Output frequency50/60 Hz
UPS topologyDouble-conversion (Online)
WaveformPure sine
Number of input phases1
Output power2200 W
Input operation voltage (min)176 V
Input operation voltage (max)276 V
Output operation voltage (min)200 V
Output operation voltage (max)240 V
Efficiency93.5%
Noise level40 dB
Output power capacity2.2 kVA
Input frequency40/70 Hz

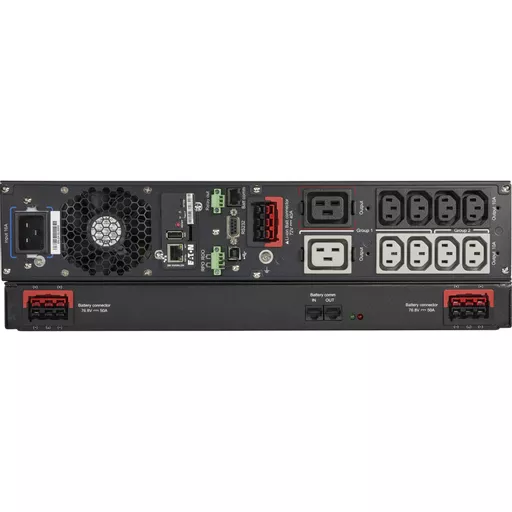

Ports & interfaces
USB portYes
AC outlets quantity10 AC outlet(s)
AC outlet typesC13 coupler, C19 coupler
Power plugC20 coupler
USB 2.0 ports quantity1
RS-232 ports1
Battery
Battery voltage72 V
Battery technologyLithium-Ion (Li-Ion)
Design
Rack capacity1U
Form factorRackmount/Tower
LED indicatorsYes
Product colourBlack, Silver
CertificationIEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2, FCC Class B, CISPR22 Class B, CB report (TUV) / EAC
Display typeLCD
Operational conditions
Operating temperature (T-T)0 - 40 °C
Technical details
Output frequency50/60 Hz
Sustainability certificatesENERGY STAR
Compliance certificatesCE
Certificates
CertificationIEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2, FCC Class B, CISPR22 Class B, CB report (TUV) / EAC
Compliance certificatesCE
Packaging content
Rack mount kitYes
Sustainability
Sustainability certificatesENERGY STAR
Weight & dimensions
Weight17.4 kg
Width438 mm
Height42 mm
Depth603 mm
Packaging data
Rack mount kitYes
