SKU: 9SX2000IBS  |   Brand: Eaton

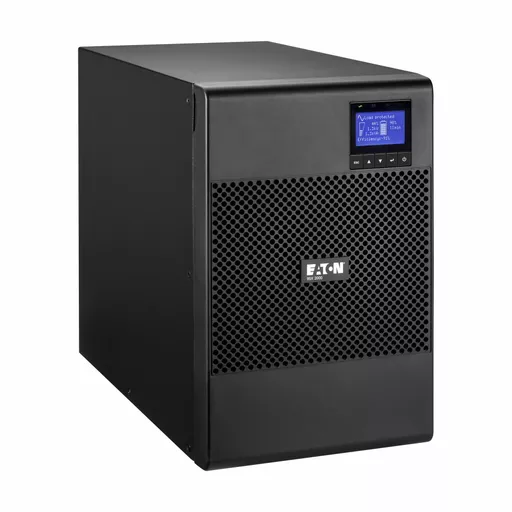

Eaton 9SX2000IBS uninterruptible power supply (UPS) Double-conversion (Online) 2 kVA 1800 W 8 AC outlet(s)

SKU: 9SX2000IBS  |   Brand: Eaton

Eaton 9SX2000IBS uninterruptible power supply (UPS) Double-conversion (Online) 2 kVA 1800 W 8 AC outlet(s)

1 in stock

£1,285.11 ex. VAT

Figures are exclusive of VAT.



The Eaton 9SX UPS offers high availability, flexibility and advanced protection for infrastructure, industrial, medical, IT, networking, storage and telecom. Delivering on-line double conversion protection in convenient tower, rack or RT format

Output power 1500W to 2000W
UPS topology Double-conversion (Online)
Form factor Tower
Product colour Black
Weight 33,700.00kg

Power
Output power factor0.9
Input power factor0.99
Output power1800 W
Input operation voltage (min)140 V
Input operation voltage (max)276 V
Output operation voltage (min)200 V
Output operation voltage (max)240 V
Efficiency92.3%
Power factor0.9
Output voltage Total Harmonic Distortion (THD)3%
Output power capacity2 kVA
Efficiency (ECO mode)97%
ECO modeYes
Performance
UPS topologyDouble-conversion (Online)
WaveformSine
Number of output phases1
Number of input phases1
Power protection featuresOverdischarge
Noise level45 dB
Features
Output frequency50/60 Hz
UPS topologyDouble-conversion (Online)
WaveformSine
Number of output phases1
Number of input phases1
Output power factor0.9
Input power factor0.99
Output power1800 W
Input operation voltage (min)140 V
Input operation voltage (max)276 V
Output operation voltage (min)200 V
Output operation voltage (max)240 V
Efficiency92.3%
Power protection featuresOverdischarge
Power factor0.9
Output voltage Total Harmonic Distortion (THD)3%
Noise level45 dB
Output power capacity2 kVA
Efficiency (ECO mode)97%
ECO modeYes
Input frequency40/70 Hz
Ports & interfaces
Serial interfaceYes
Serial interface typeRS-232

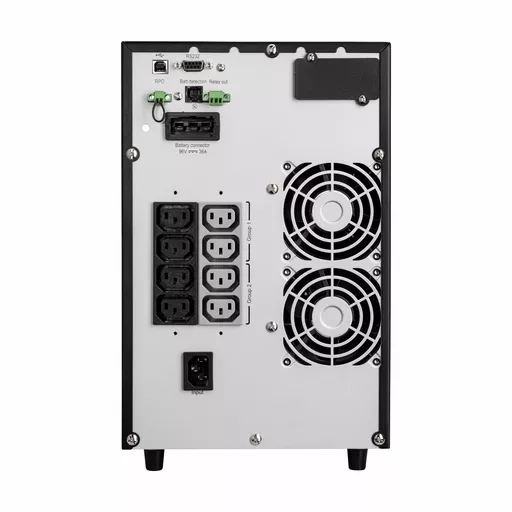

AC outlets quantity8 AC outlet(s)
AC outlet typesC13 coupler
Power plugC14 coupler
USB 2.0 ports quantity1
Serial ports quantity1
USB port typeUSB Type-B
Battery
Number of batteries supported8
Battery voltage12 V
Battery capacity7 Ah
Battery technologySealed Lead Acid (VRLA)
Typical backup time at full load7 min
Automatic battery testYes
Design
Form factorTower
Product colourBlack
CertificationTUV cULus CSA 22.2 FCC 15 / B CISPR22 B IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 EAC
Display typeLCD
Operational conditions
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)0 - 96%
Operating altitude0 - 3000 m
Technical details
Output frequency50/60 Hz
Sustainability complianceYes
Compliance certificatesCE
Weight & dimensions
Weight33.7 kg
Width320 mm
Height490 mm
Depth575 mm
Packaging data
Quick installation guideYes
Cables includedInput power cable, Serial, USB cable
Rack mount kitNo
Certificates
CertificationTUV cULus CSA 22.2 FCC 15 / B CISPR22 B IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 EAC
Packaging content
Quick installation guideYes
Cables includedInput power cable, Serial, USB cable
Rack mount kitNo
