SKU: DS-UVC-P28  |   Brand: Hikvision

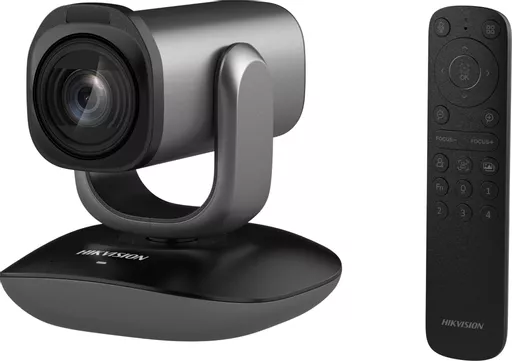

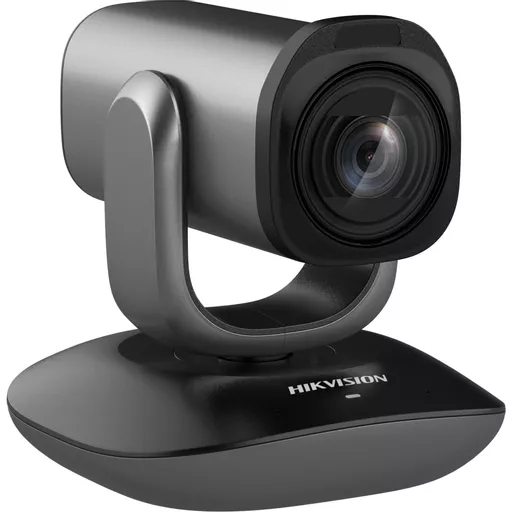

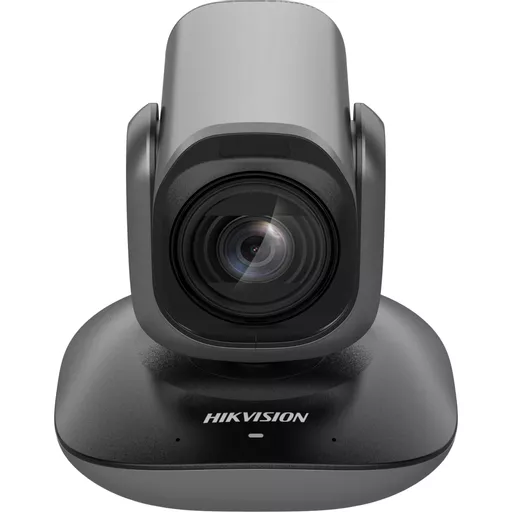

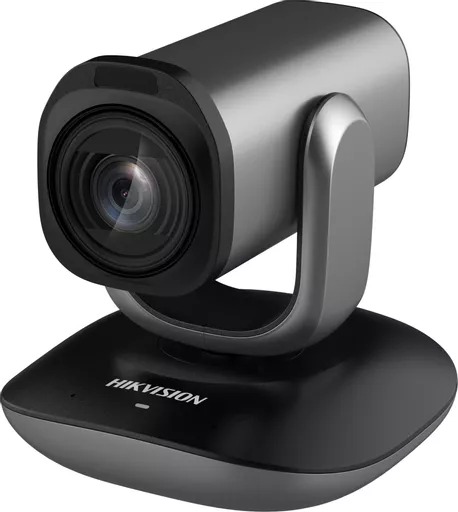

Hikvision DS-UVC-P28 video conferencing camera Black 3840 x 2160 pixels 60 fps CMOS 25.4 / 2.8 mm (1 / 2.8")

SKU: DS-UVC-P28  |   Brand: Hikvision

Hikvision DS-UVC-P28 video conferencing camera Black 3840 x 2160 pixels 60 fps CMOS 25.4 / 2.8 mm (1 / 2.8")

0 in stock

£602.76 ex. VAT

Figures are exclusive of VAT.



Product colour Black
Weight 2,705.00kg

Camera
Sensor typeCMOS
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Optical zoom12x
Digital zoom4x
Focal length range3.4 - 40.8, 23.1 - 277.2 mm
Focus adjustmentAuto
Horizontal field of view80.5°
Signal-to-Noise Ratio (SNR)70 dB
Noise reductionYes
Fastest camera shutter speed1/10000 s
Wide Dynamic Range (WDR)Yes
Vertical field of view50.5°
Camera typeSingle camera
Zoom capabilityYes
Video
Maximum video resolution3840 x 2160 pixels
Maximum frame rate60 fps
Resolution at capture speed640x360@25fps, 640x360@30fps, 640x480@25fps, 640x480@30fps, 1280x720@10fps, 1280x720@15fps, 1280x960@50fps, 1280x960@60fps, 1920x1080@25fps, 1920x1080@30fps, 1920x1080@50fps, 1920x1080@60fps, 2560x1440@25fps, 2560x1440@30fps, 3840x2160@25fps, 3840x2160@30fps
Supported video modes720p, 1080p, 1440p, 2160p
Video formats supportedH.264, M-JPEG, NV12, YUY2
HD type4K Ultra HD
Design
Product colourBlack
Built-in microphoneYes
Mounting typeStand
Tilt angle range-30 - 30°
Pan range-165 - 165°
LED indicatorsPower
Microphone frequency response100 - 8000 Hz
Microphone sensitivity-32 dB

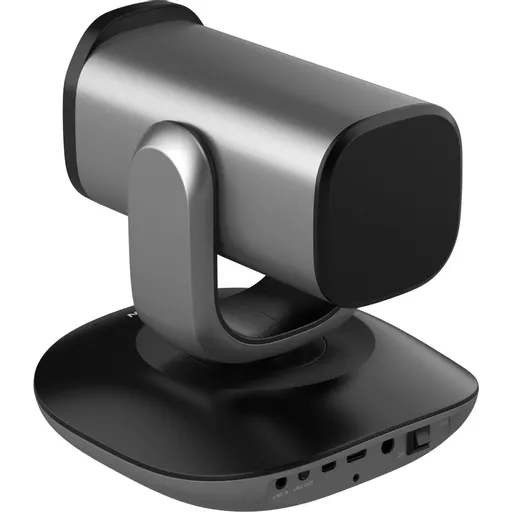

Ports & interfaces
Microphone inYes
USB Type-C connectorYes
Headphone outYes
Power
DC input voltage12 V
Power source typeDC, USB
Power consumption (max)16.6 W
Operational conditions
Operating temperature (T-T)-10 - 45 °C
Operating relative humidity (H-H)0 - 90%
System requirements
Windows operating systems supportedYes
Mac operating systems supportedYes
Mobile operating systems supportedAndroid, iOS
Linux operating systems supportedYes
Audio
Built-in microphoneYes
Noise reductionYes
Microphone frequency response100 - 8000 Hz
Microphone sensitivity-32 dB
Supported sample rates16,32,48 kHz
Number of microphones2
Microphone pick-up range5 m
Performance
Wi-FiYes
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wi-Fi bandSingle-band (2.4 GHz)
Weight & dimensions
Width148.9 mm
Depth152.1 mm
Height145.7 mm
Weight1.19 kg
Packaging data
Package width308 mm
Package depth187 mm
Package height216 mm
Package weight2.71 kg
