SKU: VS1204T  |   Brand: ATEN

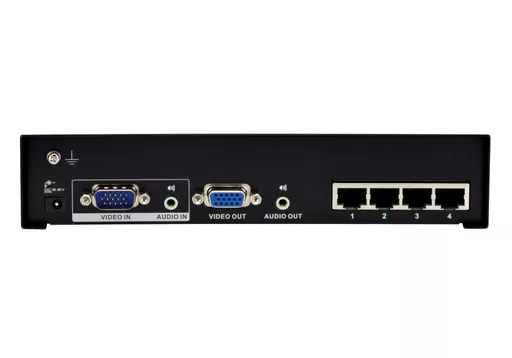

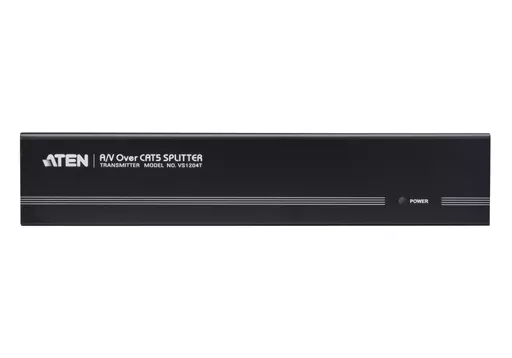

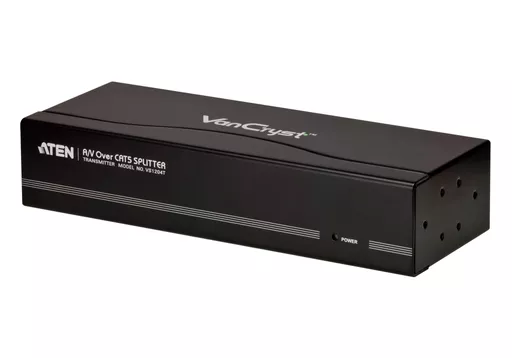

ATEN VS1204T video splitter VGA

SKU: VS1204T  |   Brand: ATEN

ATEN VS1204T video splitter VGA

1 in stock

£205.44 ex. VAT

Figures are exclusive of VAT.



The VS1204T A/V Over Cat 5 Splitter is a splitter designed to connect one source to 4 displays over a long distance. Incorporating suggested compatible receivers*, the VS1204T A/V Over Cat 5 Splitter can be a complete solution ideal for any professional A/V installation that requires multimedia content to be delivered to multiple destinations located up to 300 m away from the source.

* Suggested Compatible Receiver Units:
VE170R A/V Over Cat 5 Receiver
VE170RQ A/V Over Cat 5 Receiver with Deskew
VE172R A/V Over Cat 5 Receiver with Cascade

Weight 590.00kg

Ports & interfaces
Video ports quantity2
Video port typeVGA
Audio ports quantity2
Video outVGA
Ethernet LAN (RJ-45) ports4
DC-in jackYes
Connector(s)HDB-15, Mini Audio, RJ-45, DC-in
Cable types supportedCat5e
Ethernet LANYes
Features
Supported graphics resolutions1920 x 1200 (WUXGA)
Maximum resolution1920 x 1200 pixels
Full HDYes
Power LEDYes
Plug and PlayYes
Maximum operating distance300 m
Product colourBlack
CertificationRoHS
Bandwidth225 MHz
Network
Cable types supportedCat5e
Ethernet LANYes
Power
Power consumption (typical)1.33 W
AC input voltage5 V
Weight & dimensions
Weight590 g
Dimensions (WxDxH)74.5 x 200 x 42 mm
Packaging content
User guideYes
Operational conditions
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%
Video
Supported graphics resolutions1920 x 1200 (WUXGA)
Maximum resolution1920 x 1200 pixels
Full HDYes
Bandwidth225 MHz
Colour
Product colourBlack
Certificates
CertificationRoHS
Indication
Power LEDYes
Technical details
Video outVGA
Plug and PlayYes
Maximum operating distance300 m
Logistics data
Harmonized System (HS) code85176990
