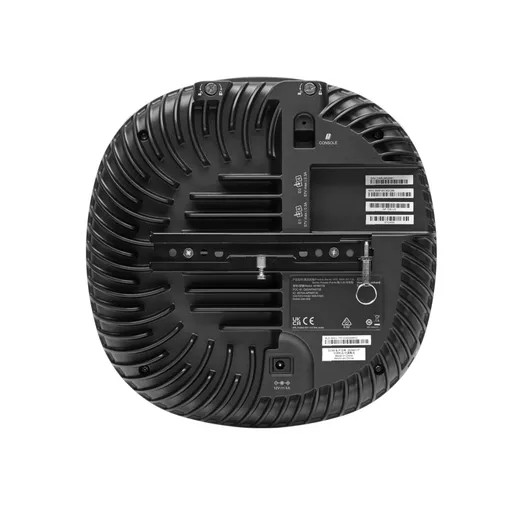

HPE Aruba Networking AP-735 (RW) Tri Radio 2x2 Wi-Fi 7 Internal Antennas Campus Access Point

SKU: S1G42A | Brand: HPE

HPE Aruba Networking AP-735 (RW) Tri Radio 2x2 Wi-Fi 7 Internal Antennas Campus Access Point

11 in stock

£1,043.90 ex. VAT

Figures are exclusive of VAT.

+ Description

The HPE Aruba Networking 730 Series Campus Access Points go beyond the Wi-Fi 7 standard to improve wireless performance, strengthen network security, deliver precise location-based services, and act as a secure Internet of Things (IoT) platform, enabling enterprises to increase the value of their wireless investment and unlock operational efficiencies. The 730 series includes unique ultra tri-band (UTB) filtering and dual 5 Gbps Ethernet ports to remove coverage gaps, provide greater resiliency, and deliver fast connectivity with enhanced security. HPE Aruba Networking Central provides intelligent automation, AI insights, and unified infrastructure management to help drive efficient IT operations. The 730 series includes a limited lifetime warranty.

What is new supporting point:
Wi-Fi 7 access points (APs) are ideal for enterprises, healthcare, LPV, education, retail, and industrial IoT deployments
Comprehensive tri‑band coverage across 2.4 GHz, 5 GHz, and 6 GHz delivers up to 9.3 Gbps maximum aggregate data rate
Patented ultra tri-band (UTB) filtering improves the use of 5 GHz and 6 GHz bands
High-density IoT support with two integrated Bluetooth 5.4 and 802.15.4 radios for Zigbee support and two USB port extensions
Built-in GNSS receiver, barometric pressure sensor, and intelligent software enable APs to self-locate and act as reference points for accurate indoor location measurements
High availability with dual 5 Gbps ports for redundant Ethernet and power

+ Tech Specs

5 GHz	Y
2.4 GHz	Y
Family	Aruba Networking
Weight	1,440.00kg

Attributes

Data transmission
Ethernet LAN data rates	5000 Mbit/s
Performance
2.4 GHz	Yes
5 GHz	Yes
Reset button	Yes
Frequency band	20/40 (2.4 GHz), 20/40/80/160 (5 GHz), 20/40/80/160/320 (6 GHz), maximum peak data rate 14.4 Gbps
Networking standards	IEEE 802.11be, IEEE 802.11mc
Ethernet LAN data rates	5000 Mbit/s
Certification	UL2043 plenum rating Wi‑Fi Alliance Wi-Fi CERTIFIED a, b, g, n, ac, 6, 7 WPA2 and WPA3 (Enterprise, Personal), Enhanced Open (OWE) WMM, WMM-PS, W-Fi agile multiband Bluetooth SIG Ethernet Alliance (PoE, PD device, class 5)
MIMO type	Multi User MIMO
MIMO	Yes
Compatible operating systems	HPE Aruba Networking Wireless Operating System 10
Wireless LAN features
Frequency band	20/40 (2.4 GHz), 20/40/80/160 (5 GHz), 20/40/80/160/320 (6 GHz), maximum peak data rate 14.4 Gbps
Network
Networking standards	IEEE 802.11be, IEEE 802.11mc
Ports & interfaces
I/O ports	E0, E1: Two Ethernet wired network ports (RJ‑45) U0, U1: Two USB 2.0 host interfaces (Type A connector) Kensington security slot Serial console interface (proprietary, micro‑B USB physical jack)
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	2
DC-in jack	Yes
Security
Cable lock slot	Yes
Security algorithms	WPA, WPA2, WPA3
Features
6 GHz	Yes
2.4 GHz	Yes
5 GHz	Yes
Frequency band	20/40 (2.4 GHz), 20/40/80/160 (5 GHz), 20/40/80/160/320 (6 GHz), maximum peak data rate 14.4 Gbps
Networking standards	IEEE 802.11be, IEEE 802.11mc
Ethernet LAN data rates	5000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.4
MIMO type	Multi User MIMO
MIMO	Yes
Maximum data transfer rate (2.4 GHz)	688 Mbit/s
Maximum data transfer rate (5 GHz)	2900 Mbit/s
Maximum data transfer rate (6 GHz)	5800 Mbit/s
Bluetooth Low Energy (BLE)	Yes
Trusted Platform Module (TPM)	Yes
BeamForming	Yes
Compatible operating systems	HPE Aruba Networking Wireless Operating System 10
Power
Power consumption (max)	36 W
Power over Ethernet (PoE)	Yes
Design
Placement	Pole, Wall
Product colour	White
Reset button	Yes
Certification	UL2043 plenum rating Wi‑Fi Alliance Wi-Fi CERTIFIED a, b, g, n, ac, 6, 7 WPA2 and WPA3 (Enterprise, Personal), Enhanced Open (OWE) WMM, WMM-PS, W-Fi agile multiband Bluetooth SIG Ethernet Alliance (PoE, PD device, class 5)
Cable lock slot	Yes
Cable lock slot type	Kensington
Recommended usage	Indoor
Antenna
Antenna type	Internal
Antenna direction type	Omni-directional
Technical details
Reset button	Yes
Compliance certificates	Federal Communications Commission (FCC), ISED, CE, Low Voltage Directive (LVD)
Certificates
Certification	UL2043 plenum rating Wi‑Fi Alliance Wi-Fi CERTIFIED a, b, g, n, ac, 6, 7 WPA2 and WPA3 (Enterprise, Personal), Enhanced Open (OWE) WMM, WMM-PS, W-Fi agile multiband Bluetooth SIG Ethernet Alliance (PoE, PD device, class 5)
Compliance certificates	Federal Communications Commission (FCC), ISED, CE, Low Voltage Directive (LVD)
Weight & dimensions
Width	240 mm
Depth	240 mm
Weight	1.44 kg
Height	56 mm
Packaging content
Quantity per pack	1 pc(s)
Other features
I/O ports	E0, E1: Two Ethernet wired network ports (RJ‑45) U0, U1: Two USB 2.0 host interfaces (Type A connector) Kensington security slot Serial console interface (proprietary, micro‑B USB physical jack)
Operational conditions
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 95%
System requirements
Compatible operating systems	HPE Aruba Networking Wireless Operating System 10
Logistics data
Quantity per pack	1 pc(s)
