Teleproject UK


SKU: S1G84A  |   Brand: HPE

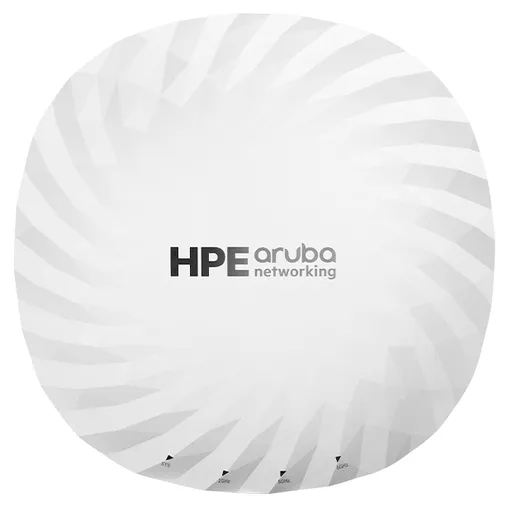

HPE Aruba Networking AP-755 (RW) Tri Radio 4x4 Wi-Fi 7 Internal Antennas Campus Access Point

SKU: S1G84A  |   Brand: HPE

HPE Aruba Networking AP-755 (RW) Tri Radio 4x4 Wi-Fi 7 Internal Antennas Campus Access Point

1 in stock

£1,605.34 ex. VAT

Figures are exclusive of VAT.



HPE Aruba Networking 750 Series Campus Access Points are our flagship Wi-Fi 7 access points that deliver impressive wireless performance, strengthen network security, provide precise location-based services, and offer an Internet of Things (IoT) platform with enterprise-grade security, enabling enterprises to fully realize the value of their wireless investment and unlock operational efficiencies. This high performance access point is designed with three 4x4 MIMO radios (2.4 GHz, 5 GHz, and 6 GHz), dual 10 Gbps Ethernet ports, dual IoT radios, built-in GNSS receiver, and patented ultra tri-band (UTB) filtering for high capacity, fast, and resilient connectivity with enhanced security. HPE Aruba Networking Central provide intelligent automation, AI insights, and unified infrastructure management to help drive efficient IT operations. The 750 series includes a limited lifetime warranty.

What is new supporting point:
Built-in GNSS receiver, barometric pressure sensor, and intelligent software enable APs to self locate and act as reference points for accurate indoor location measurements
High-density IoT support with two integrated Bluetooth 5.4 and 802.15.4 radios for Zigbee support and two USB port extensions
Patented ultra tri-band (UTB) filtering enhances the use of 5 GHz and 6 GHz bands
Three 4x4 MIMO radios provide comprehensive tri‑band coverage across 2.4 GHz, 5 GHz, and 6 GHz for up to 18.7 Gbps maximum aggregate data rate
High availability with dual 10 Gbps wired ports for redundant Ethernet and power, as well as the ability to combine power from both ports
AI-powered Wi-Fi 7 access points are ideal for the most demanding enterprise, healthcare, LPV, education, retail, and industrial IoT deployments

5 GHz Y
2.4 GHz Y
Family Aruba Networking
Weight 2,130.00kg

Data transmission
Ethernet LAN data rates10000 Mbit/s
Performance
2.4 GHzYes
5 GHzYes
Wi-Fi Multimedia (WMM)/(WME)Yes
Auto MDI/MDI-XYes
Reset buttonYes
Frequency band20/40 (2.4 GHz), 20/40/80/160 (5 GHz), 20/40/80/160/320 (6 GHz), and maximum peak data rate 28.8 Gbps
Networking standardsIEEE 802.11be, IEEE 802.11mc
Ethernet LAN data rates10000 Mbit/s
CertificationUL2043 plenum rating Wi‑Fi Alliance: Wi‑Fi CERTIFIED a, b, g, n, ac, 6, 7 WPA2 and WPA3 (Enterprise, Personal), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi agile multiband Bluetooth SIG Ethernet Alliance (PoE, PD device, class 6)
MIMO typeMulti User MIMO
MIMOYes
Compatible operating systemsHPE Aruba Networking Wireless Operating System 10.7.0.0 or later
Wireless LAN features
Frequency band20/40 (2.4 GHz), 20/40/80/160 (5 GHz), 20/40/80/160/320 (6 GHz), and maximum peak data rate 28.8 Gbps
Network
Networking standardsIEEE 802.11be, IEEE 802.11mc
Ports & interfaces
I/O portsE0, E1: Two Ethernet wired network ports (RJ‑45) U0, U1: Two USB 2.0 host interfaces (Type A connector) Serial console interface (proprietary, micro‑B USB physical jack) Kensington security slot
USB 2.0 ports quantity2
Ethernet LAN (RJ-45) ports2
DC-in jackYes
Features
6 GHzYes
2.4 GHzYes
5 GHzYes
Wi-Fi Multimedia (WMM)/(WME)Yes
Auto MDI/MDI-XYes
Frequency band20/40 (2.4 GHz), 20/40/80/160 (5 GHz), 20/40/80/160/320 (6 GHz), and maximum peak data rate 28.8 Gbps
Networking standardsIEEE 802.11be, IEEE 802.11mc
Ethernet LAN data rates10000 Mbit/s
BluetoothYes
Bluetooth version5.4
MIMO typeMulti User MIMO
MIMOYes
Maximum data transfer rate (2.4 GHz)1400 Mbit/s
Maximum data transfer rate (5 GHz)5800 Mbit/s
Maximum data transfer rate (6 GHz)11500 Mbit/s
Bluetooth Low Energy (BLE)Yes
Trusted Platform Module (TPM)Yes
BeamFormingYes
Compatible operating systemsHPE Aruba Networking Wireless Operating System 10.7.0.0 or later
Power
Power consumption (max)51 W
Power over Ethernet (PoE)Yes
DC voltage range48 V
Design
PlacementWall
Product colourWhite
Reset buttonYes
CertificationUL2043 plenum rating Wi‑Fi Alliance: Wi‑Fi CERTIFIED a, b, g, n, ac, 6, 7 WPA2 and WPA3 (Enterprise, Personal), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi agile multiband Bluetooth SIG Ethernet Alliance (PoE, PD device, class 6)
Recommended usageIndoor
Antenna
Antenna typeInternal
Antenna direction typeOmni-directional
Technical details
Reset buttonYes
Compliance certificatesFederal Communications Commission (FCC), ISED, CE, Low Voltage Directive (LVD)
Certificates
CertificationUL2043 plenum rating Wi‑Fi Alliance: Wi‑Fi CERTIFIED a, b, g, n, ac, 6, 7 WPA2 and WPA3 (Enterprise, Personal), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi agile multiband Bluetooth SIG Ethernet Alliance (PoE, PD device, class 6)
Compliance certificatesFederal Communications Commission (FCC), ISED, CE, Low Voltage Directive (LVD)
Weight & dimensions
Width260 mm
Depth260 mm
Weight1.53 kg
Height57 mm
Package width320 mm
Package depth320 mm
Package height83 mm
Package weight2.13 kg
Packaging data
Package width320 mm
Package depth320 mm
Package height83 mm
Package weight2.13 kg
Packaging content
Quantity per pack1 pc(s)
Other features
I/O portsE0, E1: Two Ethernet wired network ports (RJ‑45) U0, U1: Two USB 2.0 host interfaces (Type A connector) Serial console interface (proprietary, micro‑B USB physical jack) Kensington security slot
Operational conditions
Operating relative humidity (H-H)5 - 95%
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Storage relative humidity (H-H)5 - 95%
System requirements
Compatible operating systemsHPE Aruba Networking Wireless Operating System 10.7.0.0 or later
Logistics data
Quantity per pack1 pc(s)
