SKU: U7-IW  |   Brand: Ubiquiti

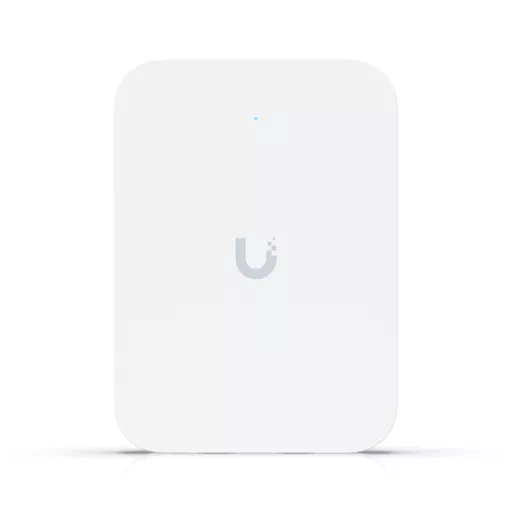

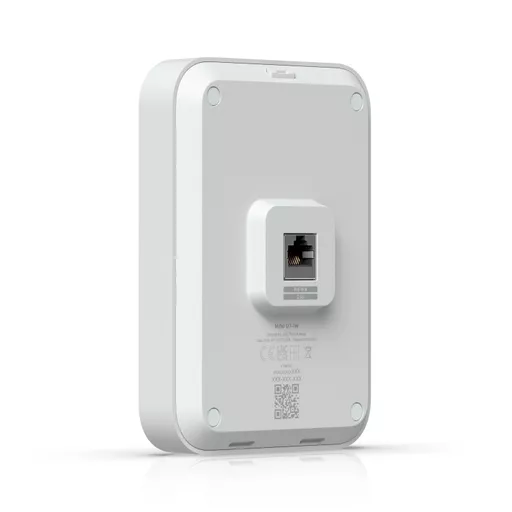

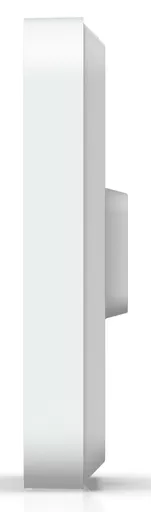

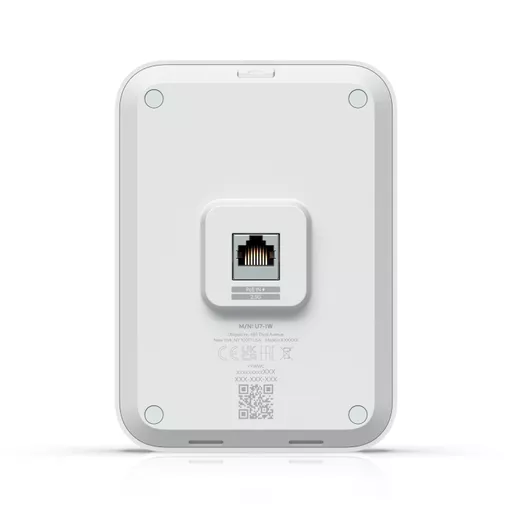

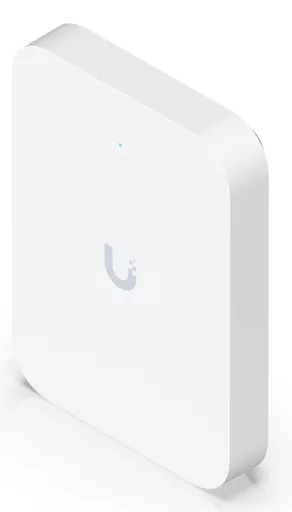

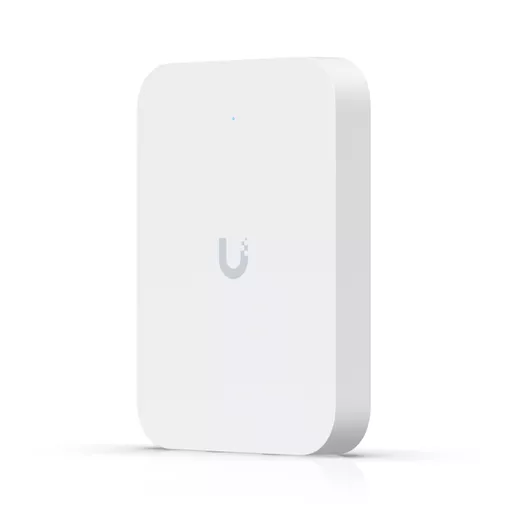

Ubiquiti U7 In-Wall 4300 Mbit/s White Power over Ethernet (PoE)

SKU: U7-IW  |   Brand: Ubiquiti

Ubiquiti U7 In-Wall 4300 Mbit/s White Power over Ethernet (PoE)

17 in stock

£122.23 ex. VAT

Figures are exclusive of VAT.



Wall-mounted WiFi‎ 7 AP with 4 spatial streams and an integrated 2.5 GbE PoE switch designed for hospitality environments.

5 GHz Y
2.4 GHz Y
Weight 400.00kg

Data transmission
Ethernet LAN data rates2500 Mbit/s
Maximum data transfer rate4300 Mbit/s
Performance
2.4 GHzYes
5 GHzYes
Reset buttonYes
Frequency band2.4 - 5 GHz
Number of users200 user(s)
VLAN supportYes
Networking standardsIEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v
Ethernet LAN data rates2500 Mbit/s
Maximum data transfer rate4300 Mbit/s
MIMO typeMulti User MIMO
MIMOYes
Band steeringYes
Wireless LAN features
Frequency band2.4 - 5 GHz
Network
Number of users200 user(s)
Networking standardsIEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v
Management features
VLAN supportYes
Access point managementWi-Fi schedule
Features
6 GHzNo
2.4 GHzYes
5 GHzYes
Frequency band2.4 - 5 GHz
Number of users200 user(s)
VLAN supportYes
Networking standardsIEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v
Ethernet LAN data rates2500 Mbit/s
Maximum data transfer rate4300 Mbit/s
Fast roamingYes
MIMO typeMulti User MIMO
MIMOYes
Band steeringYes
Maximum data transfer rate (2.4 GHz)688 Mbit/s
Maximum data transfer rate (5 GHz)4300 Mbit/s
Fit AP mode featuresHotspot 2.0
Spatial streams4
Coverage area115 m²
Wireless meshingYes
Maximum Tx power (2.4 GHz)23 dBmW
Maximum Tx power (5 GHz)24 dBmW
Security
Security algorithmsPPSK
Ports & interfaces

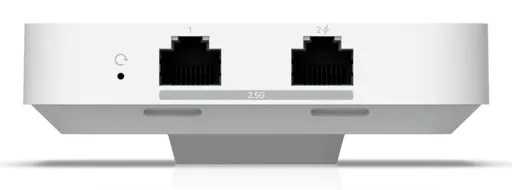

Ethernet LAN (RJ-45) ports3
Power
Power consumption (max)13 W
Power over Ethernet (PoE)Yes
DC voltage range42.5 - 57 V
Design
Housing materialAluminium, Polycarbonate (PC)
PlacementWall
Product colourWhite
Reset buttonYes
LED indicatorsStatus
Antenna
Antenna typeInternal
Antennas quantity4
Antenna gain level (max)8 dBi
Technical details
Reset buttonYes
Compliance certificatesCE, Federal Communications Commission (FCC), Industry Canada (IC)
Certificates
Compliance certificatesCE, Federal Communications Commission (FCC), Industry Canada (IC)
Indication
LED indicatorsStatus
Software
Fast roamingYes
Weight & dimensions
Width98.7 mm
Depth30.2 mm
Weight400 g
Height137 mm
Packaging data

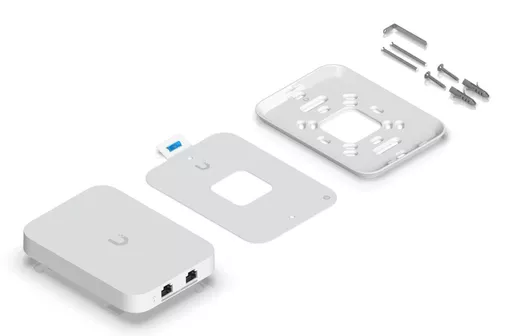

Mounting kitYes
Packaging content
Mounting kitYes
Quantity per pack1 pc(s)
Operational conditions
Operating relative humidity (H-H)5 - 95%
Operating temperature (T-T)-30 - 40 °C
Logistics data
Quantity per pack1 pc(s)
